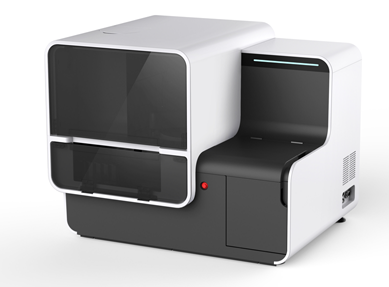

Automatic Coagulation Analyzer Ci-120i
| Ci-120i is a fully automatic bench top analyzer consisting of an analytical module and a control module |
 |
| Operates on whole blood or platelet- poor plasma | platelet-poor plasma |
| platelet-poor plasma | racks, primary tubes |
| Model type | benchtop |
| Dimensions (H × W × D)- analyzer Dimensions (H × W × D)- Outer packing |
640mm×800mm ×630mm 860mm×950mm ×755mm |
| Weight- analyzer Weight- Outer packing |
85kg 125kg |
| Electric Ratings: | ac. 110-240V, 50/60Hz, ＜800VA |
| Ambient Temperature: | Between 15℃ and 30℃ |
| Relative Humidity: | Between 35% and 85 % |
| Methodologies supported | clot detection (LED optical transmission method)； chromogenic； immunologic； Wavelength 405nm；545nm；670nm；800nm |
| Number of different measured assays onboard simultaneously | 15 |
| Number of different assays programmed and calib. at one time | unlimited |
| Factor assays require manual manipulation or dilutions | No |
| Number of reagent containers onboard at once | 24 (reagent area，8℃) |
| Multiple reagent configurations supported | Yes |
| Walkaway capacity: Number of specimens/Number of tests | 25/up to 500 |
| Minimum sample volume aspirated precisely at one time | 3ul |
| Standard specimen volume required to run PT or PTT/Factor VIII activity | 50ul/25ul |
| Primary tube sampling supported/Pierces caps on primary tubes | Yes/No |
| Sample bar-code reading capability | Yes |
| Reagent bar-code reading capability | Yes |
| Onboard test automatic inventory | Yes |
| Measures No. of tests remaining/Short sample detection | Yes/Yes |
| Auto. detects adequate reagents for aspiration and analysis | Yes |
| Dilution of patient samples onboard | Yes |
| Automatic rerun capability/Auto reflex testing capability | Yes |
| Read time extended for prolonged clotting times | Yes |
| User can set different-than-standard | 1） Reagent volumes/Sample volumes； 2） No. and sources of reagent； 3） Incubating times/Reading times； |
| Autocalib. Or autocalib. Alert / Multipoint calib. supported | Yes |
| Stat time to complete all analyses/Throughput per hour for: | PT Alone：≦6 minutes/150 specimens PT, PTT：≦6 minutes/80 specimens D-dimer：≦6 minutes/80 specimens Factor VIII activity assay：≦11 minutes/60 specimens |
| Time delay from ordering STAT to aspiration of sample | minimal |
| Number of Measurements | At each standard point, up to 5 simultaneous multi-parameter analysis is available. |
| Automatic transfer of QC results to LIS | Yes |
| Protection Function | Over-heat Protection Fuse Mechanical stop switch Cover open/close sensor Probe protection sensor Over-current Protection Fuse |
| Unit Error Alert Function |
Instrument Abnormality-Monitoring Function |
| automatic supply reaction cuvettes | Yes |
