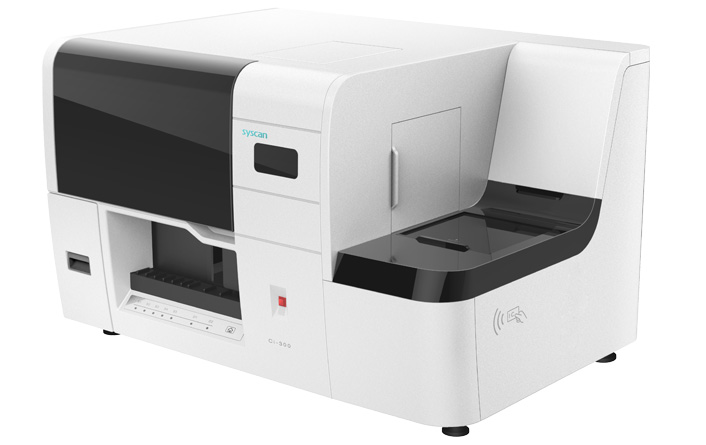

Automatic Coagulation Analyzer Ci-300

Ci-300 is a fully automatic bench top analyzer consisting of an analytical module and a control module.

Operates on whole blood or platelet-poor plasma	platelet-poor plasma
platelet-poor plasma	racks, primary tubes
Model type	benchtop
Dimensions (H × W × D) Dimensions (H × W × D)- Outer packing	650mm×1030mm ×720mm 890mm×1200mm ×850mm
Weight- analyzer Weight- Outer packing	140kg 180kg
Electric Ratings:	ac. 110-240V, 50/60Hz, ＜1200VA
Ambient Temperature:	Between 15℃ and 30℃
Relative Humidity:	Between 30% and 85 %
Methodologies supported	clot detection (LED optical transmission method)； chromogenic； immunologic；
Wavelength	405nm；545nm；670nm；800nm
Number of different measured assays onboard simultaneously	30
Number of different assays programmed and calib. at one time	unlimited
Factor assays require manual manipulation or dilutions	No
Number of reagent containers onboard at once	36 (reagent area，8℃)+10（dilution area，12℃）=46
Multiple reagent configurations supported	Yes
Walkaway capacity: Number of specimens/Number of tests	50/up to 1000
Minimum sample volume aspirated precisely at one time	3ul
Standard specimen volume required to run PT or PTT/Factor VIII activity	50ul/25ul
Primary tube sampling supported/Pierces caps on primary tubes	Yes/No
Sample bar-code reading capability	Yes
Reagent bar-code reading capability	Yes
Onboard test automatic inventory	Yes
Measures No. of tests remaining/Short sample detection	Yes/Yes
Auto. detects adequate reagents for aspiration and analysis	Yes
Dilution of patient samples onboard	Yes
Automatic rerun capability/Auto reflex testing capability	Yes
Read time extended for prolonged clotting times	Yes
User can set different-than-standard	1） Reagent volumes/Sample volumes； 2） No. and sources of reagent； 3） Incub. times/Reading times；
Autocalib. or autocalib. alert/Multipoint calib. supported	Yes
Stat time to complete all analyses/Throughput per hour for:	PT Alone：≦6 minutes/300 specimens PT, PTT（MIX）：≦6 minutes/300 specimens D-Dimer：≦6 minutes/300 specimens Factor VIII activity assay：≦11 minutes/150 specimens
Time delay from ordering STAT to aspiration of sample	minimal
Number of Measurements	At each standard point, up to 5 simultaneous multi-parameter analysis is available.
Automatic transfer of QC results to LIS	Yes
Protection Function	Over-heat Protection Fuse Mechanical stop switch Cover open/close sensor Probe protection sensor Over-current Protection Fuse
Unit Error Alert Function	Instrument Abnormality-Monitoring Function 1) Temperature at heating/cooling section 2) Presence or absence of reagent racks 3) Shortage of reagent 4) Presence or absence of cuvette 5) Shortage of buffer or rinse solution 6) Operation of mechanical parts 7) Other self-diagnosis by service mode Sample Abnormality-Monitoring Function 1) Upper and Lower Limit Judgement 2) Automatic Re-dilution Analysis (for the dilution analysis parameter only) 3) Reflex Testing
automatic supply reaction cuvettes	Yes
